steam/Thermal oil heating reactor-Chemical equipment company

1/1页

Product overview

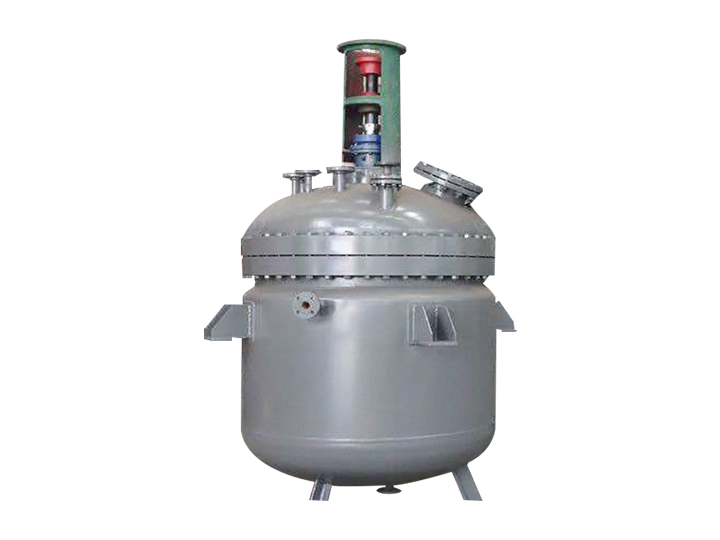

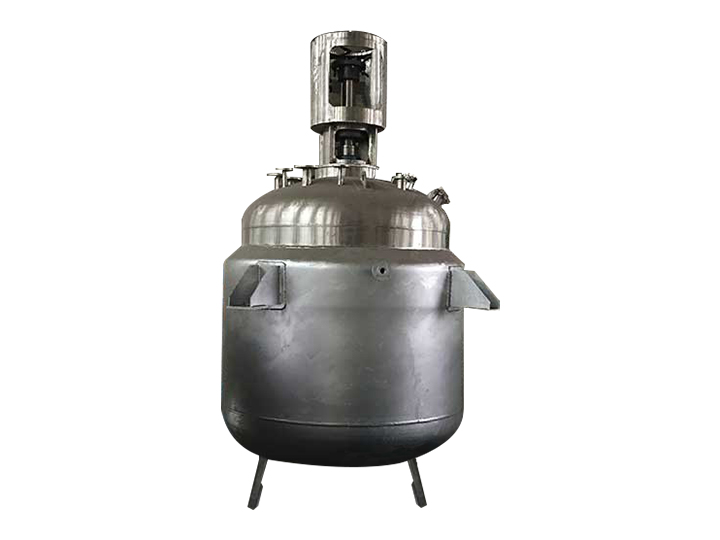

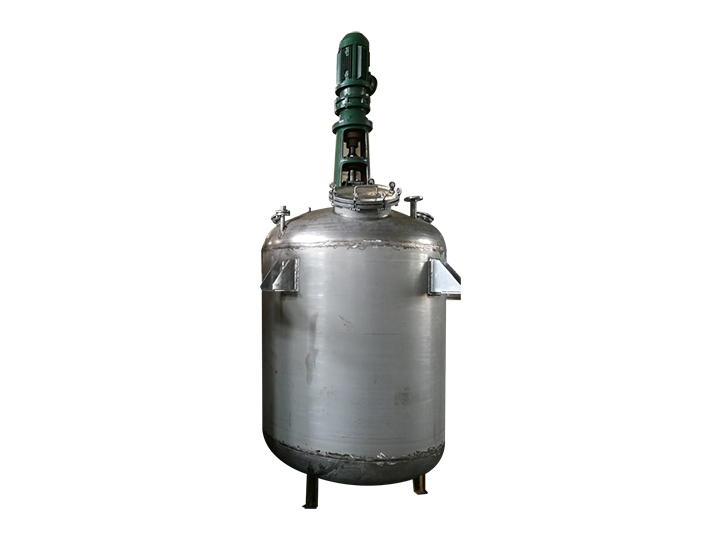

steam/The thermal oil heating reaction kettle has the characteristics of rapid heating, high temperature resistance, corrosion resistance, hygiene, no environmental pollution, electric heating stainless steel reaction kettle, no need for automatic boiler heating, easy use, and low price. Widely used in chemical, pharmaceutical, food and other industries, the materials used304Stainless steel.

Technical parameters

Specification L	Inner cylinder diameterΦ MM	Jacket diameterΦ MM	Motor power KW	Reducer model	Stirring speed r.p.m
30	400	500	0.6~1.1	M2	60~85
50	500	600	0.6~1.1	M3	60~85
100	550	650	1.1~1.5	M4	60~85
150	600	700	2.2	M6	60~85
200	650	750	2.2	M6	60~85
300	800	900	2.2	M6	60~85
500	900	1000	2.2	M6	60~85
800	1100	1200	4	M8	60~85
1000	1200	1300	4	M8	60~85
1500	1300	1400	4	M8	60~85
2000	1400	1500	4	M8	60~85
2500	1400	1500	7.5	BLB7.5-4-13	90
3000	1400	1500	7.5	BLB7.5-4-13	90
3500	1400	1500	7.5	BLB7.5-4-13	90
4000	1500	1600	7.5	BLB7.5-4-13	63
5000	1600	1700	7.5	BLB7.5-4-13	63
6000	1800	1900	15	BLB7.5-4-13	100
8000	2000	2100	15	BLB7.5-4-13	100
32000	3000	3200	37	BLB450-11-45	50~100
