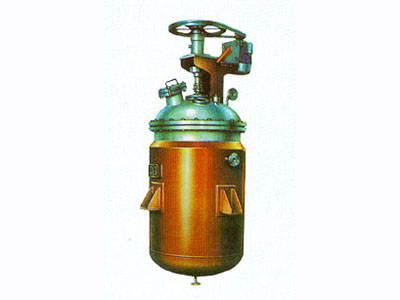

seed jar

Product overview
The seed jars produced by our factory are made of carbon steel and stainless steel. Mainly used in biochemical fermentation production, such as the production of monosodium glutamate, citric acid, enzyme preparations, glycerin, pharmaceuticals, food and other industries. See the table below for specifications.
Note: The cooling and heating forms include jacket type, inner coil type, and outer ring tube type for users to choose.

Technical parameters

Nominal volume (M³)	Barrel diameter (Dgmm)	Barrel heightH(mm)	Heat exchange area M²	Stirring shaft speed r.p.m	Stirring shaft power KW
0.05	300	700	400	300-350	0.55
0.1	400	800	500	300-350	0.75-1.1
0.2	500	1000	600	280-340	0.75-1.5
0.3	550	1200	650	280-340	1.1-1.5
0.5	600	1650	700	280-320	1.5-2.2
0.8	800	1600	900	200-280	2.2-5.5
1.0	800	1900	900	200-280	2.2-5.5
1.2	900	1800	1000	200-280	3-7.5
1.5	900	2200	1000	200-280	3-7.5
2.0	1000	2500	1100	200-260	4-11
3.0	1200	2600	1300	200-260	5.5-11
4.0	1300	3000	1400	200-220	7.5-15
5.0	1400	3200	1500	180-220	7.5-18.5
