Product overview

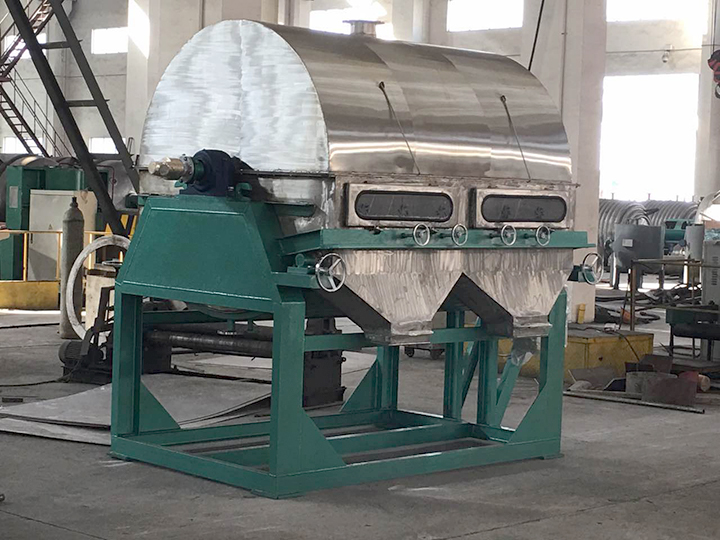

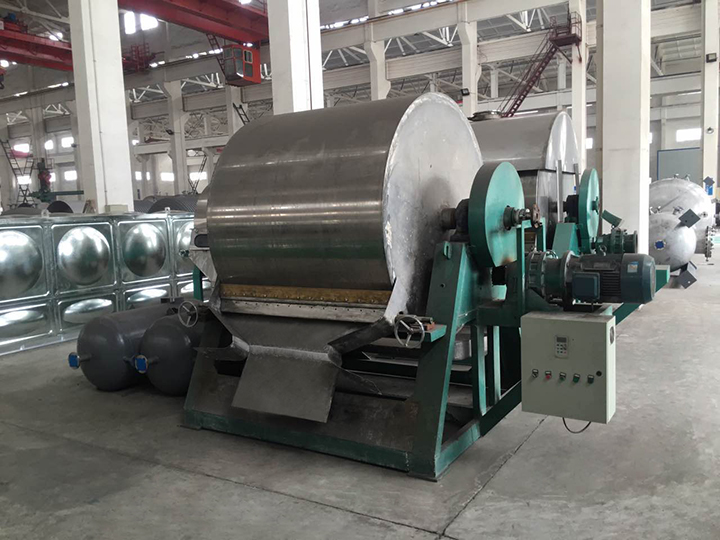

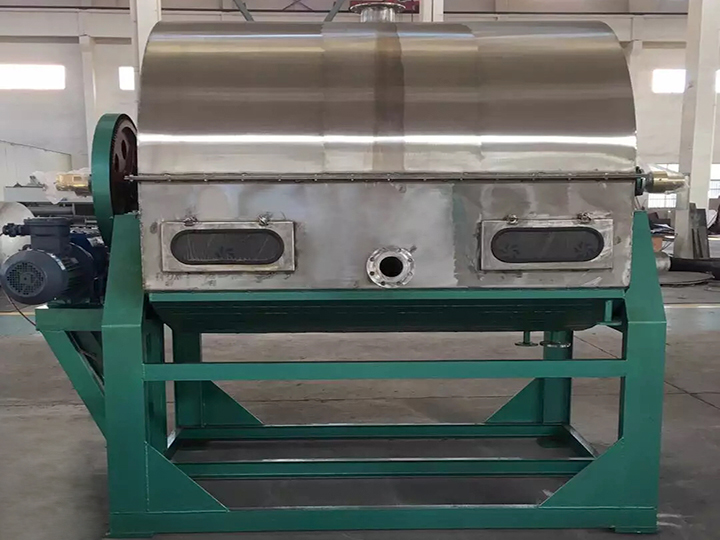

       The condensation crystallization slicer slices the heated liquid raw material through the stainless steel internal cooling roller in the trough of the equipment and rotates the adhesive tape to the adjustable scraper device at the front. The finished liquid is converted into solid pieces by the cooling scraper. It can also scrape the raw material that has been cooled and turned into crystals. Widely used in chemical, oil and other industries. The raw materials formed by the slicer have higher product quality than other pulverized raw materials. Moreover, the equipment has good stability and is easy to operate. The thickness of the scraper material and the output can be determined according to the characteristics of the raw materials, the drum speed and the feeding speed. The specifications of the scraper blade can be customized according to the customer's quantity.

Specifications and models

Drum specifications mm	Motor power KW	Slicing speed r/min Frequency conversion control	Reference dimensionsmm
			L	W	H
500×500	2.2	2-12	1500	600	1000
600×600	2.2	2-12	1600	700	1200
700×700	2.2-3	2-12	1700	800	1400
800×800	3-4	2-12	1800	900	1450
900×900	3-4	2-12	2000	1000	1550
1000×1000	4-5.5	2-12	2200	1100	1700
1200×1200	4-5.5	2-12	2400	1300	1900
1200×1500	5.5-7.5	2-12	2800	1300	1900
1500×1500	5.5-7.5	2-12	2800	1600	2100
1500×1800	7.5-11	2-12	3100	1600	2100
1500×2000	7.5-11	2-12	3300	1600	2100
2000×2000	11-15KW	2-12	3300	2100	2500
1500×3000	11-15KW	2-12	4800	1600	2200
2000×3000	15-21KW	2-12
