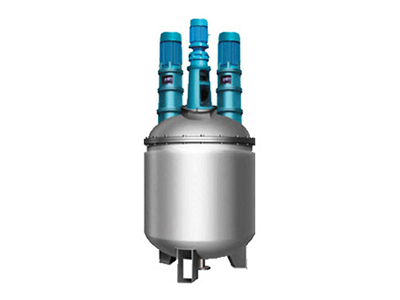

Multifunctional dispersing kettle



Product overview
       The multifunctional dispersion reactor integrates low-speed powerful stirring and high-speed dispersion into one, and has good adaptability to medium-high viscosity and thixotropic materials. Due to stirring and dispersion, good results can be obtained. This machine is suitable for mixing, dissolving, dispersing and mixing paint of various materials. It is simple to operate and has strong adaptability. It is a suitable multi-functional equipment for mixing, dispersing and so on.

Technical parameters
parameter model
FS-2 FS-3 FS-5 FS-6 FS-8 FS-10 FS-12
Volume (m³) 2 3 5 6 8 10 12
Stirring power (kw) 5.5 5.5 7.5 7.5 11 13 14.3
Stirring speed (r/min) 50 50 50 50 41 41 41
Agitator diameter (mm) 1300 1500 1700 1700 1900 2100 2300
Dispersion speed (r/min)
Dispersed power (kw) 13/16 13/16 22/24 22/28 22/28 26/34 30/42
Number of scattered disks 2 4 4 4 4 6 6
Overall dimensions D(mm) 1400 1600 1600 1800 2000 2200 2400
M1(mm) 1650 1765 2040 2400 2400 2950 3100
M2(mm) 1900 2000 2200 2500 2500 2570 2620
